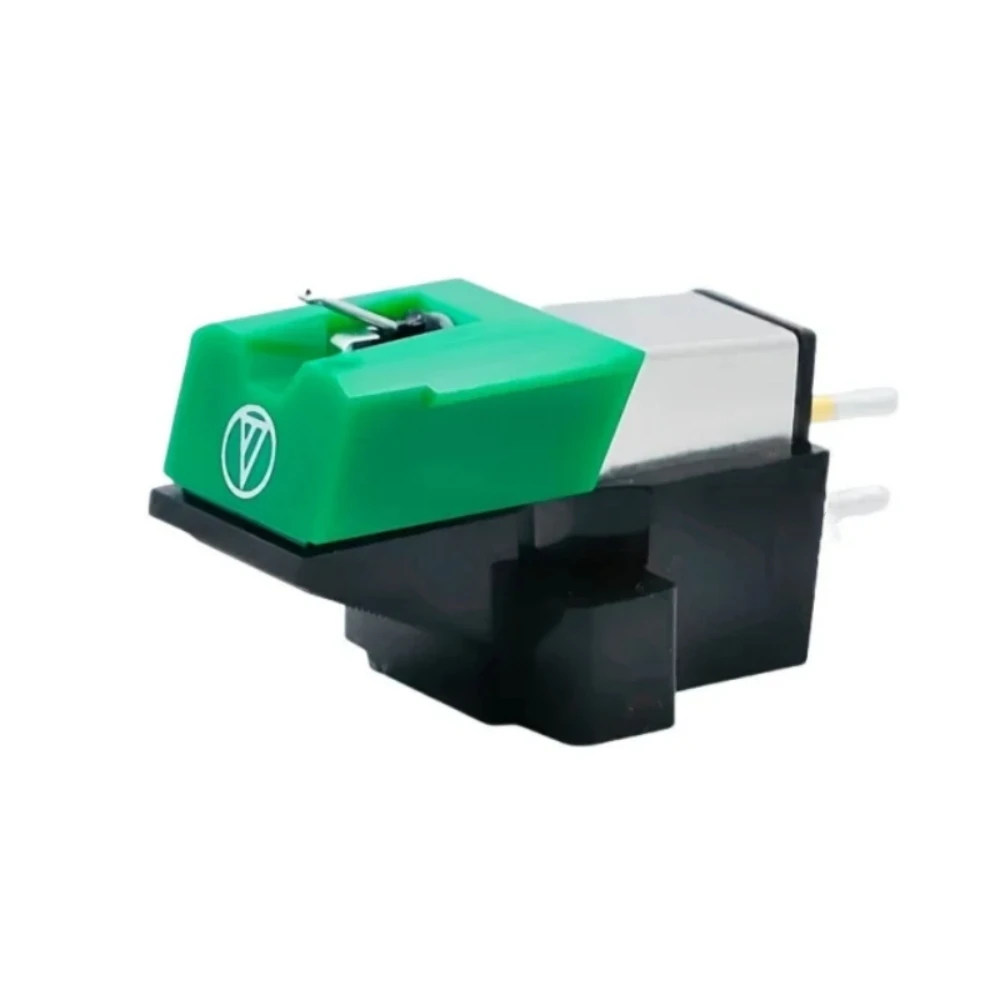

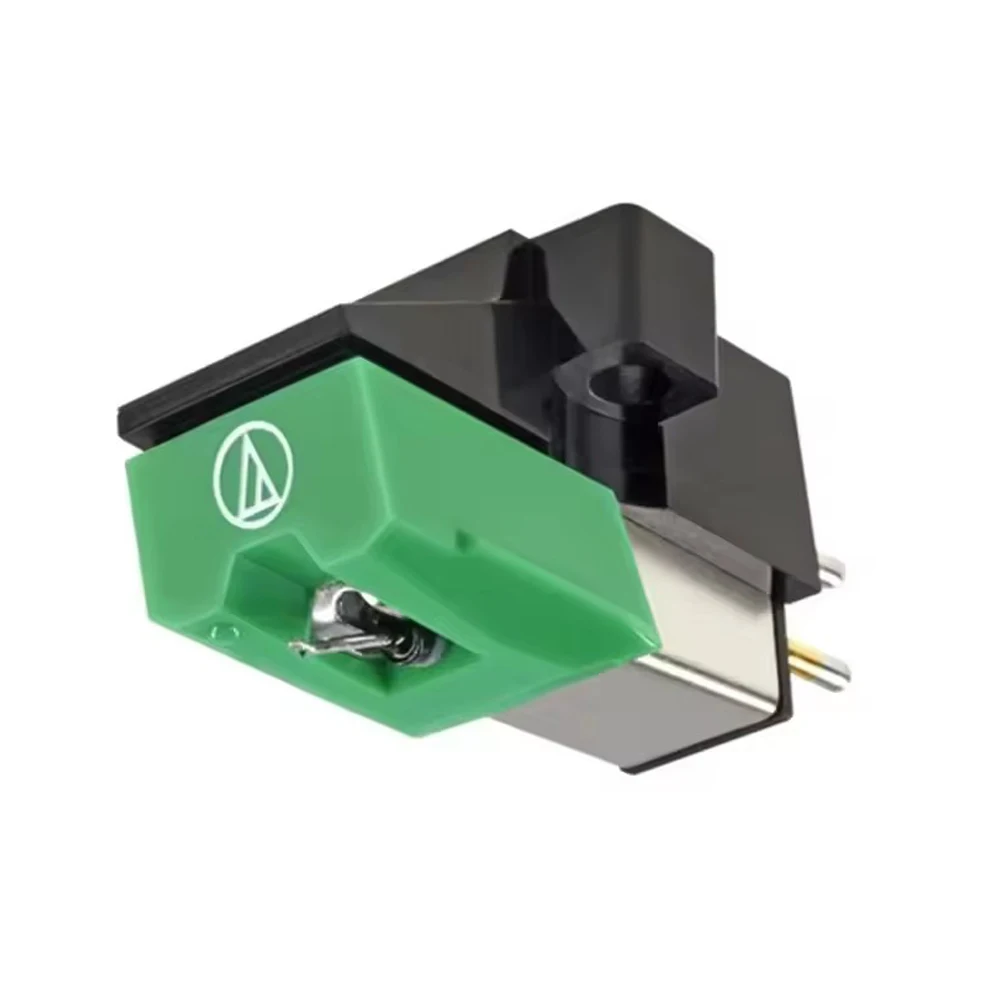

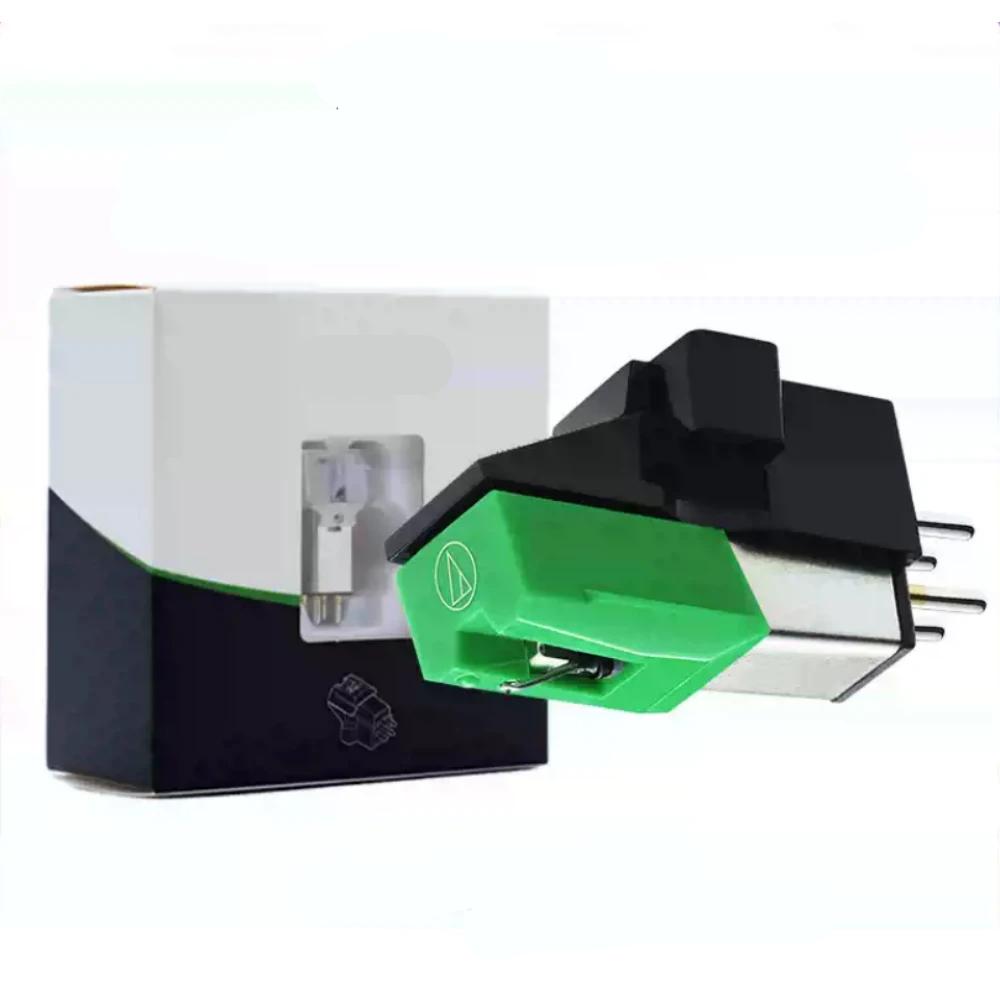

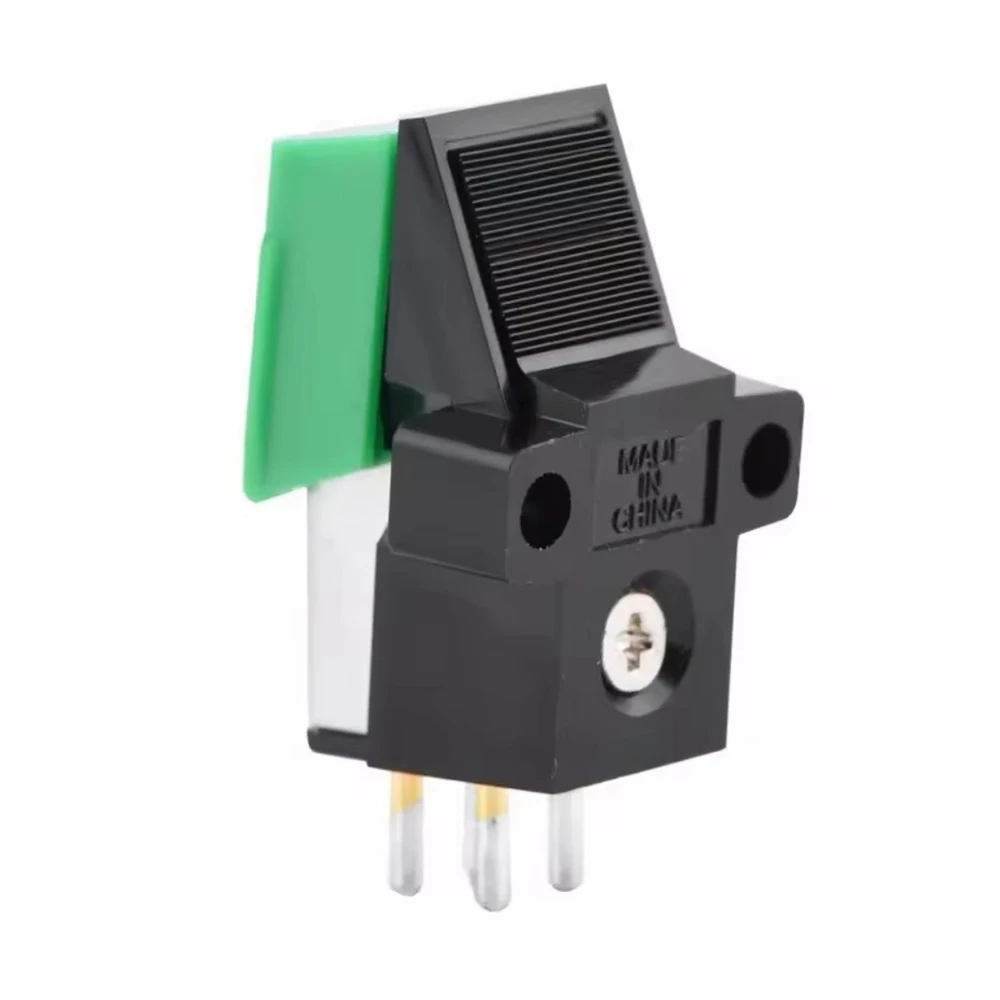

The AT95E cartridge provides excellent resolution and detail. High performance cartridge. Audio-Technica has high quality standards, each cartridge is carefully manufactured, and errors are strictly controlled. The oval diamond can reproduce the music with high precision. Mounting accessories are included in the box.

Phono fixed hole distance: 10mm (measurement center distance is 12.5mm) distribution fixed rose

Phono category: MM moving magnet

Response frequency: 20～20,000Hz

Output voltage: 3.5mV (1kHz, 5cm/sec.)

Channel separation: 20dB (1kHz)

Output Balance: 2.0dB (1kHz)

Acupuncture pressure: 1.5-2.5g (recommended gauge pressure 2.0g)

Coil Impedance: 2.8kΩ (1kHz)

Coil DC resistance: 410Ω

Recommended load resistance: 47kΩ

Load capacitance: 100～200pF

Coil Inductance: 400mH (1kHz)

Static compliance: 20×10-6cm/dyne

Dynamic compliance: 6.5×10-6cm/dyne(100Hz)

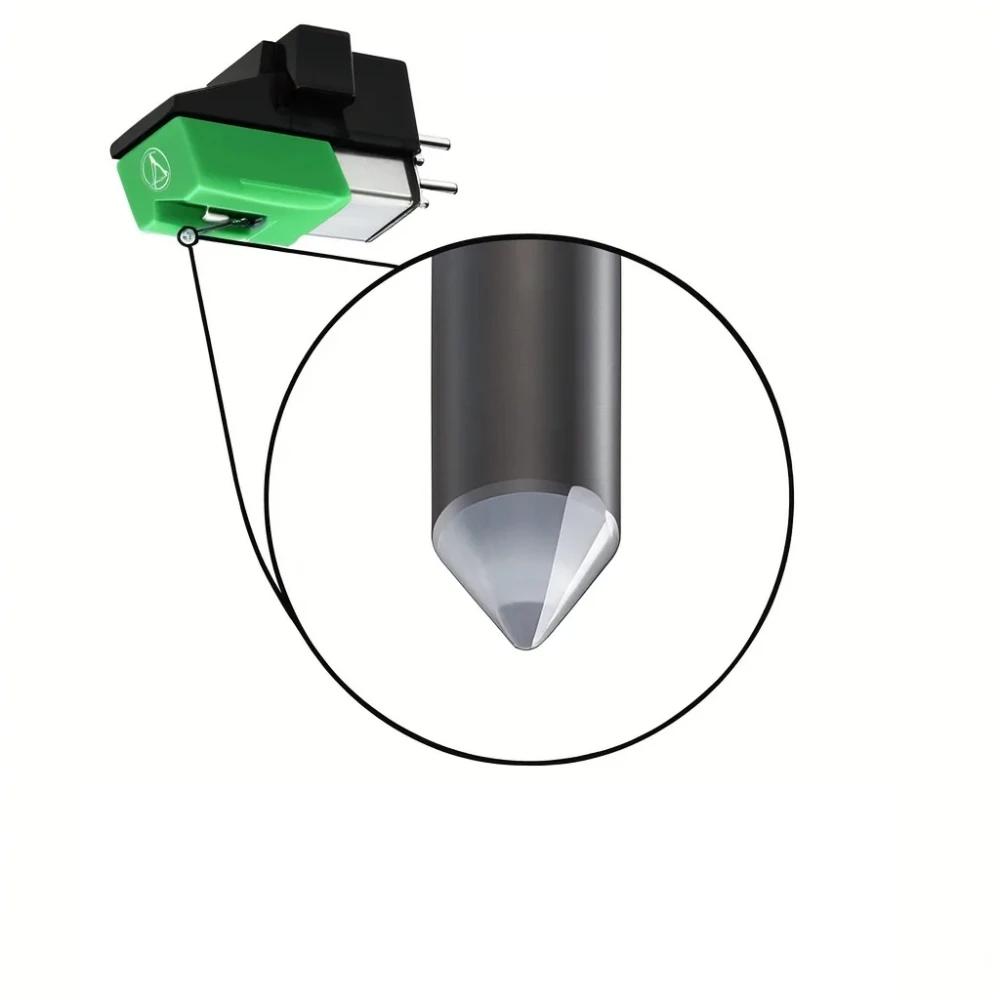

Tip Shape: Engaged oval needle (0.4×0.7mil)

Needle bar: aluminum alloy tubular

Vertical tracking angle: 20°

Dimensions: H17.2×W17.0×D30.5mm

Cartridge weight: 5.7g

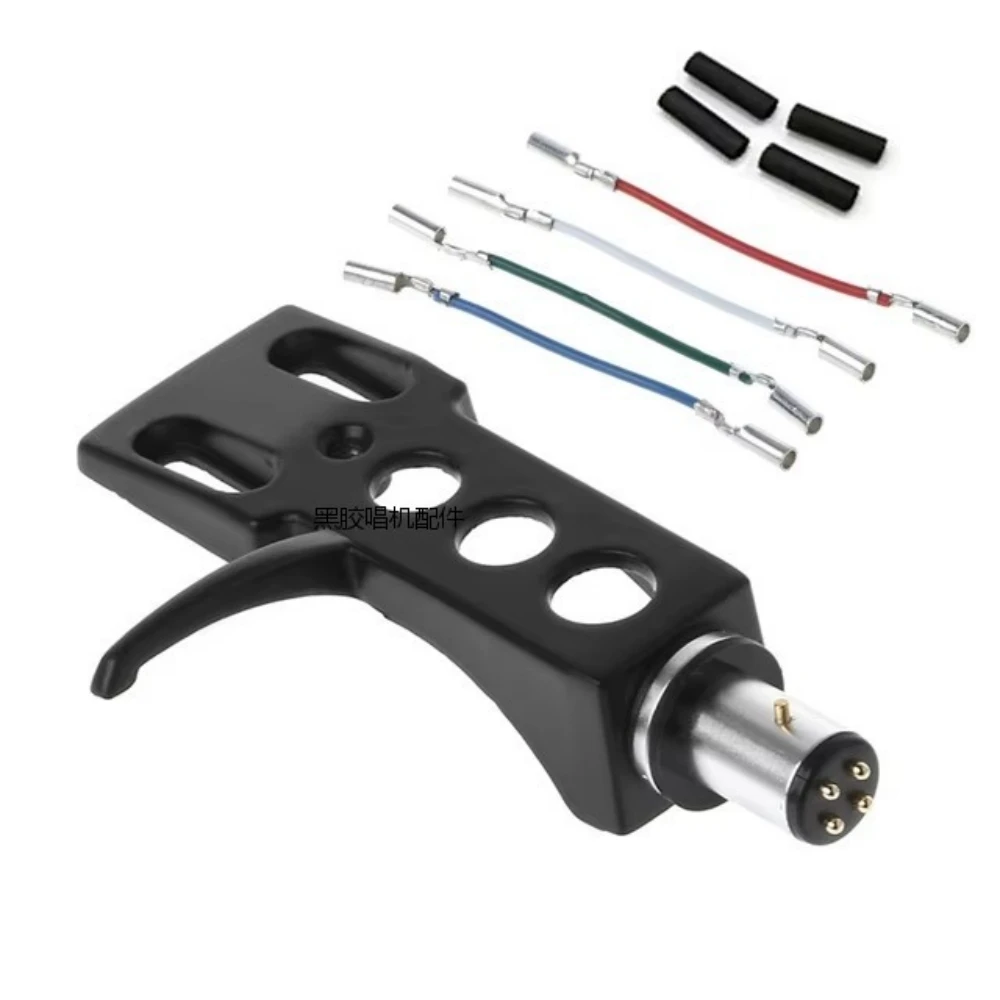

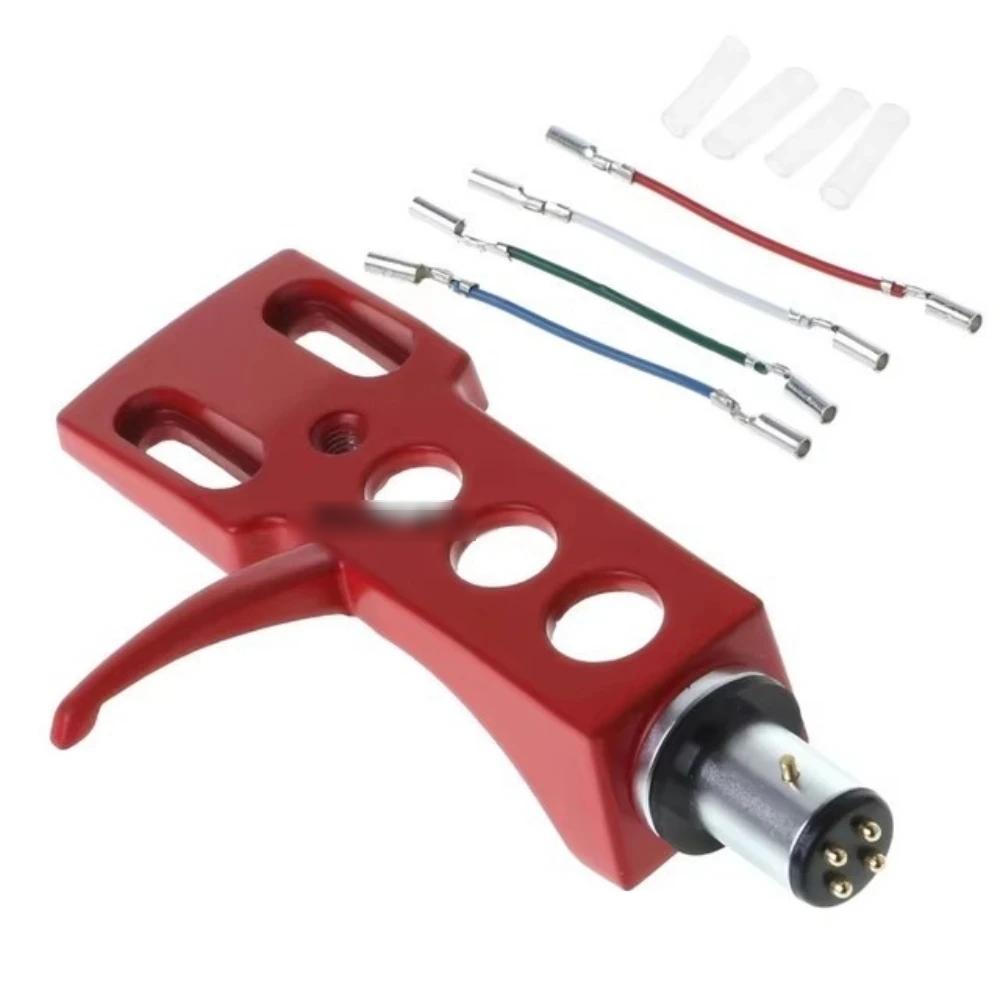

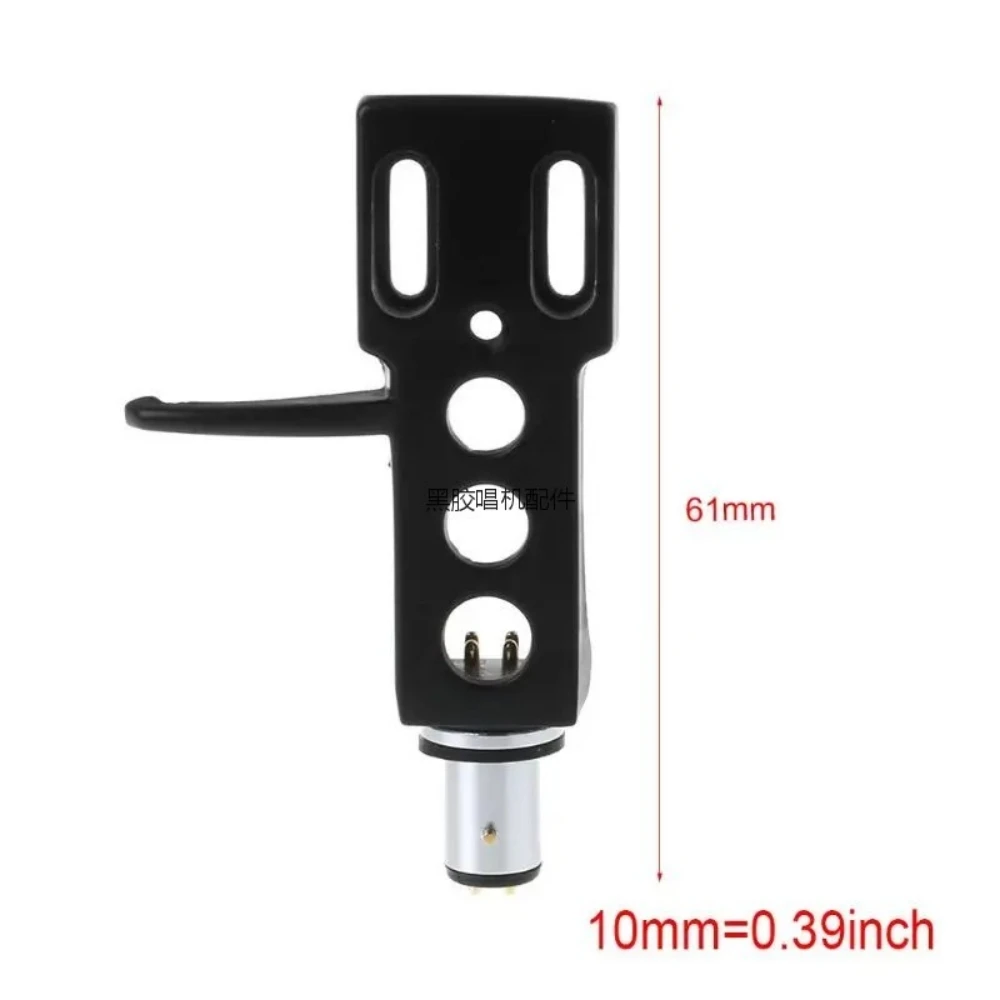

LP vinyl record player Cartridge bracket

[Signal] Equipped with connecting wires suitable for various types of singing heads

[Material] Aluminum alloy/connection port (tail plug) chrome plated

【 Craftsmanship 】 Matte baking paint, with a good appearance and texture

[Specification] 8mm outer diameter, gold-plated 4PIN pin

【 Quality 】 9g

[Color] Black/Silver/Gold/Red

【 Installation Method 】

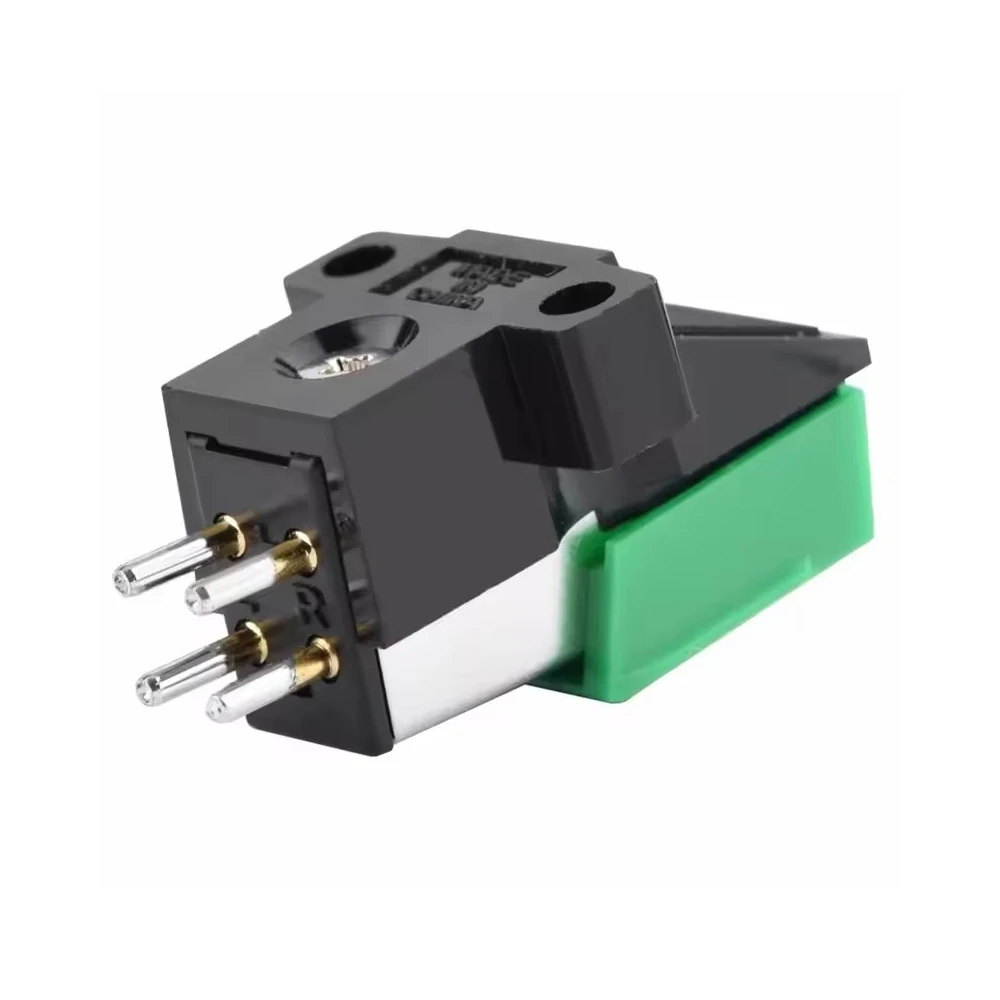

The turntable terminal has wiring labels for R+, R -, L+, and L -4 pins. Generally, the wiring colors for the turntable terminal are: R+=red, R -=green, L+=white, L -=blue
