The two inch fever full frequency speaker unit has been upgraded to DIY Bluetooth boutique, original and authentic.
The PLS series full frequency speakers set high standards for compact full frequency speaker applications, such as being equipped with TV sound systems and compact music systems.

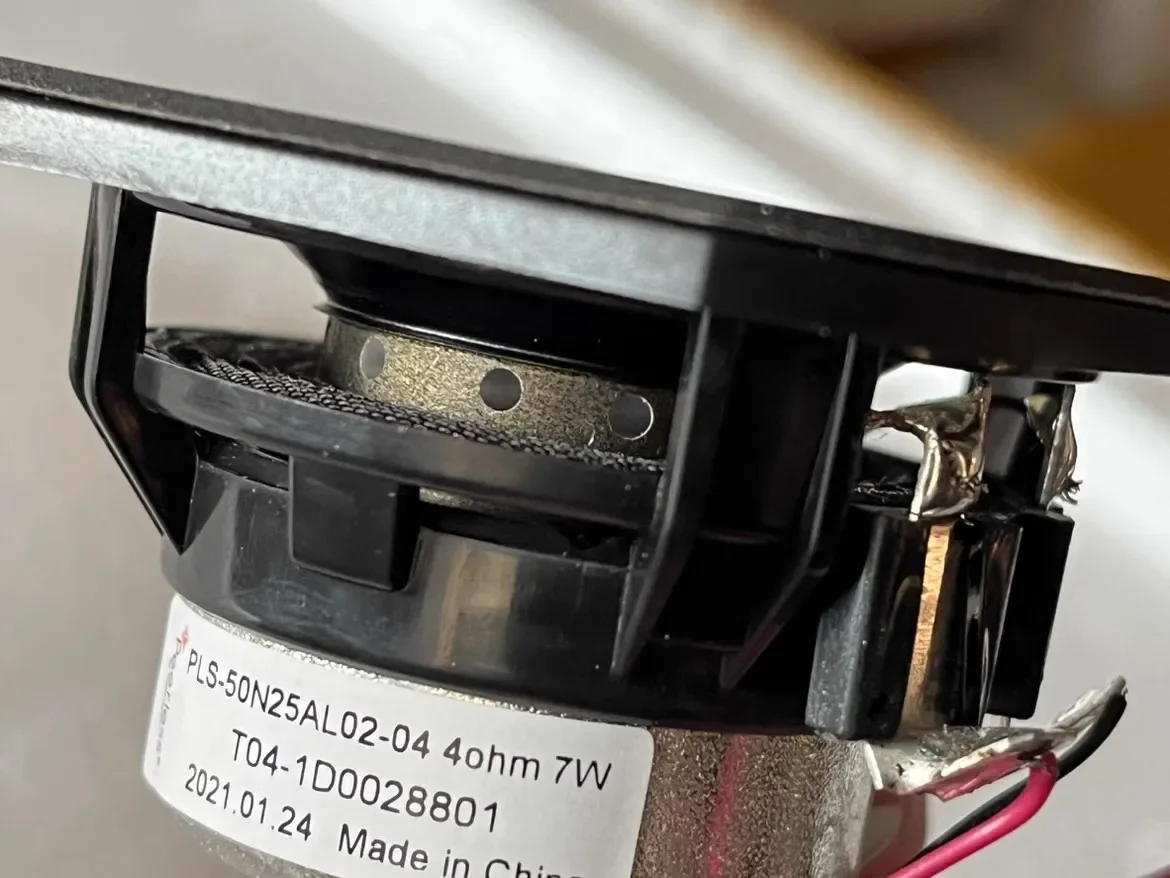

The characteristics of this speaker unit series include the use of a damping plastic bowl frame that opens under elastic waves to assist in magnetic circuit heat dissipation, a copper short-circuit ring to reduce the inductance of the neodymium iron boron magnetic circuit voice coil, while reducing low-frequency distortion and extending high-frequency response.

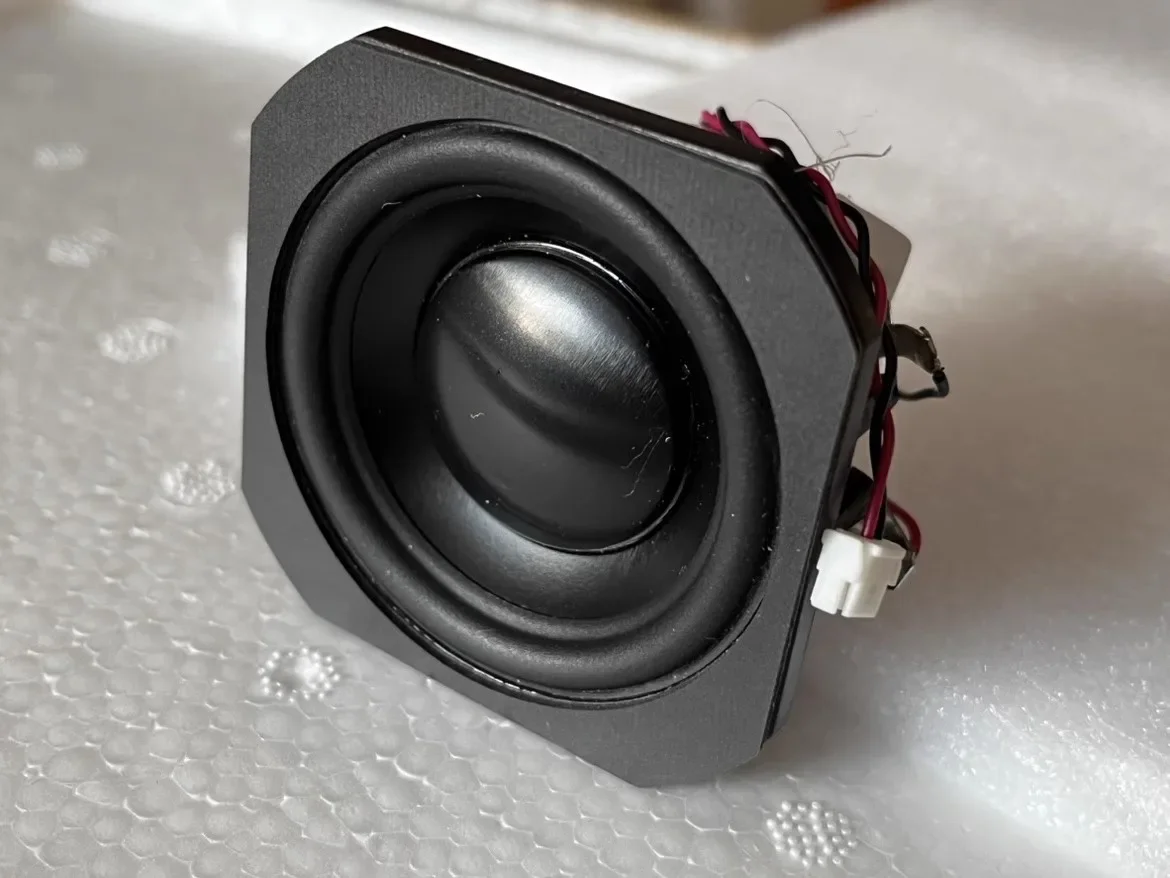

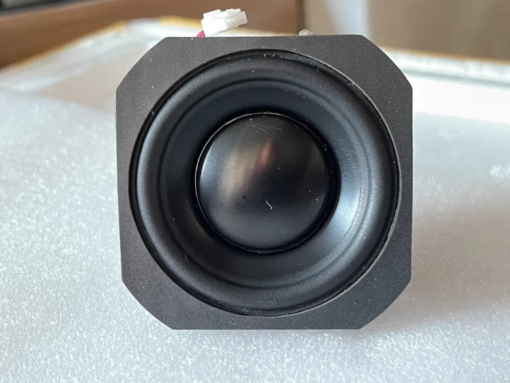

The speaker unit uses a black anodized aluminum bowl and a black anodized aluminum dust cap directly coupled to the voice coil.
In addition, the design of the speaker with a large ring rubber edge allows for linear dynamic response even with a large stroke input signal. To enrich the units of the PLS full frequency speaker series with different requirements, ferrite magnetic circuits and metal stamped basin frames are also used.
Product features
High performance neodymium magnets
Double opening magnetic circuit
Anodized alumina diaphragm/dust cap
Semi progressive rubber folding to reduce distortion
Ring copper electrode cap control impedance
Impedance: 4ohm
Power: 7-20W
Outer diameter: 55 * 55mm
Diagonal screw hole: 57mm,
maximum diagonal diameter: 65mm,
opening: 50mm, height: 33mm

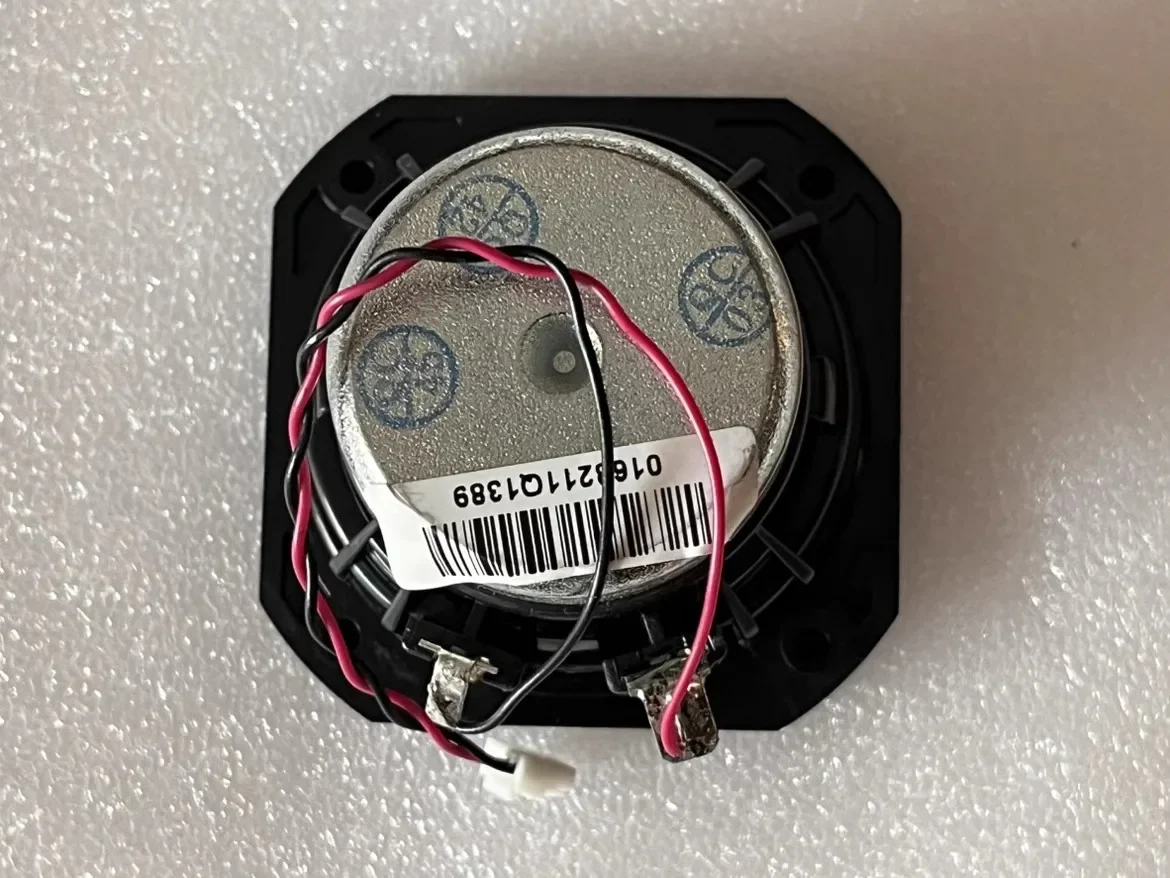

There is a layer of cotton on the surface, and you can see the screw holes when you peel them off. The Pia Lux customized horn is in good condition, so don’t miss it if you like it
Package
2pcs
