-25%

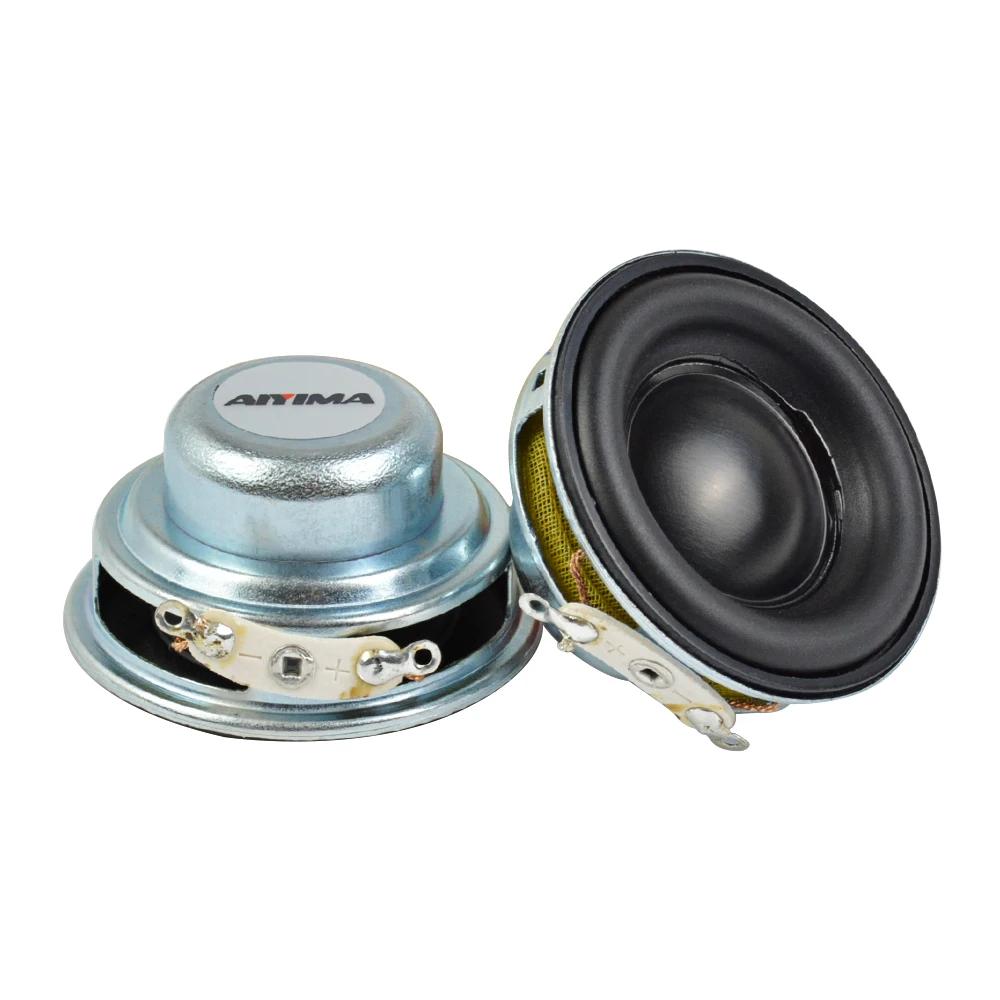

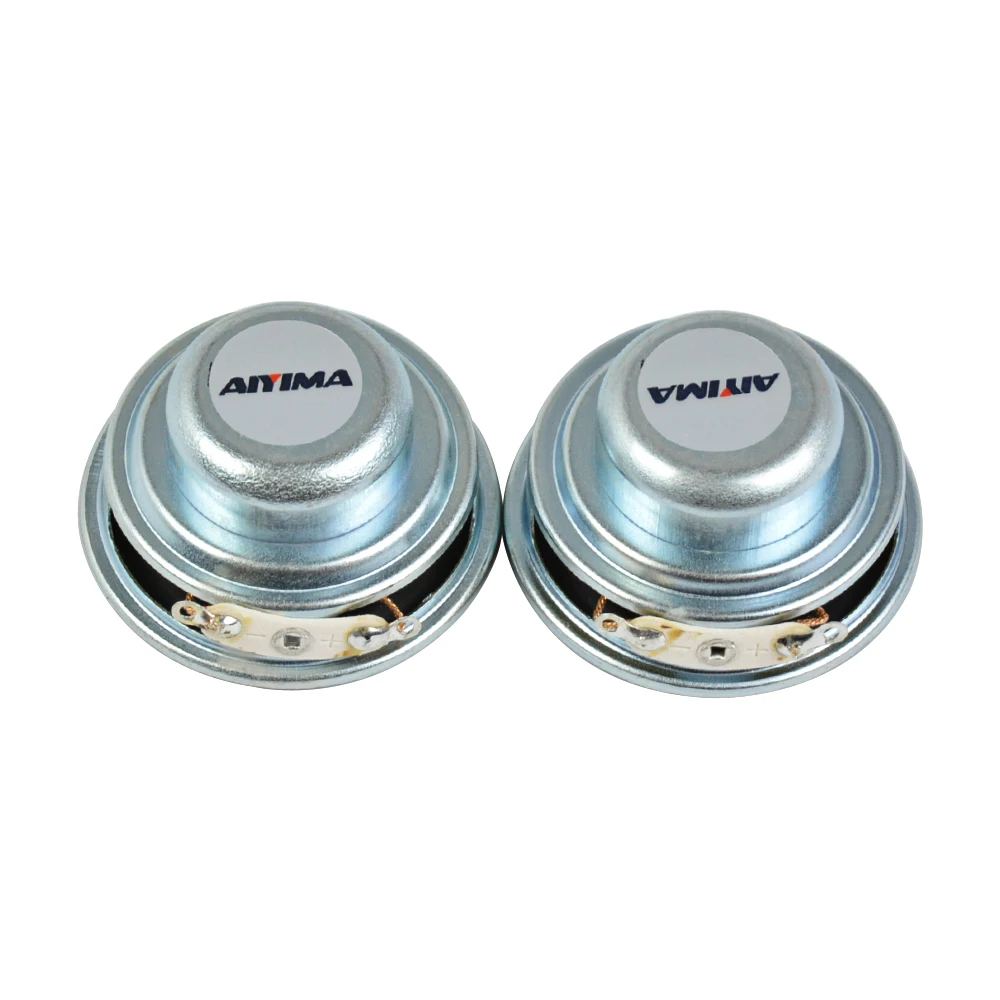

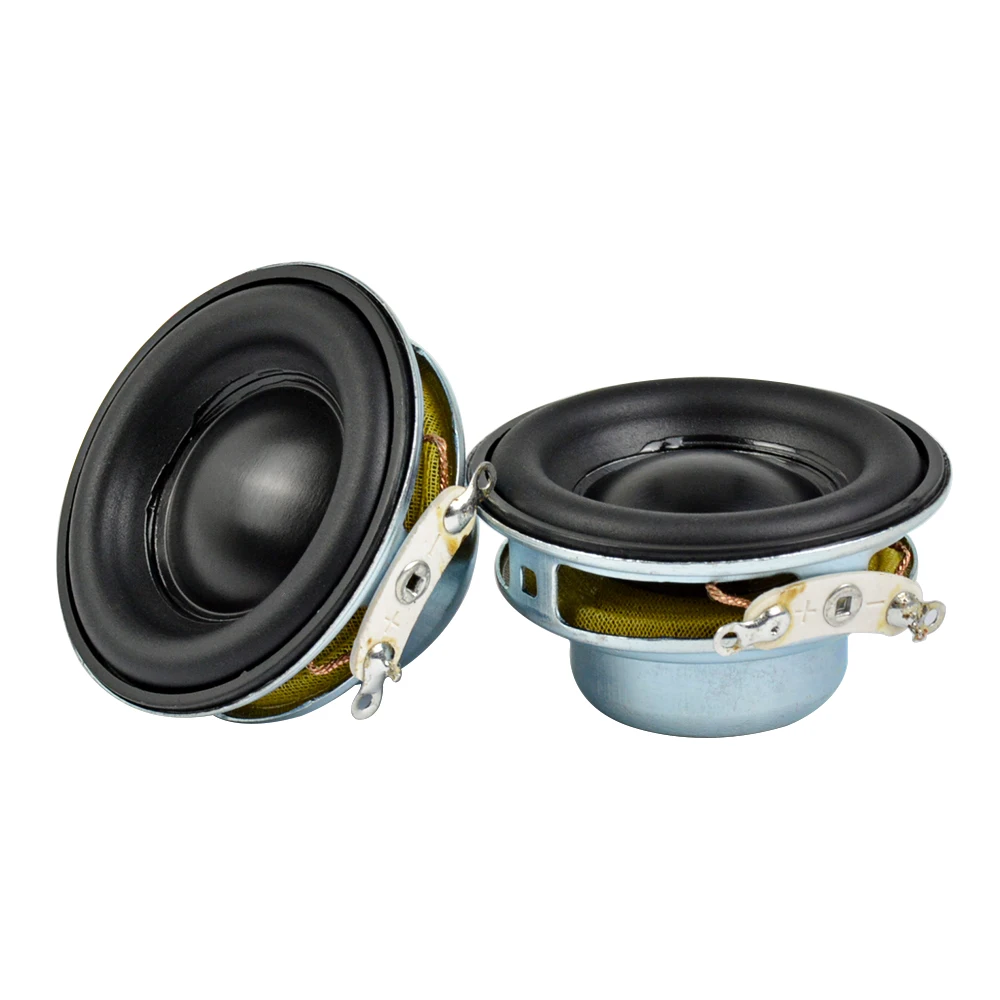

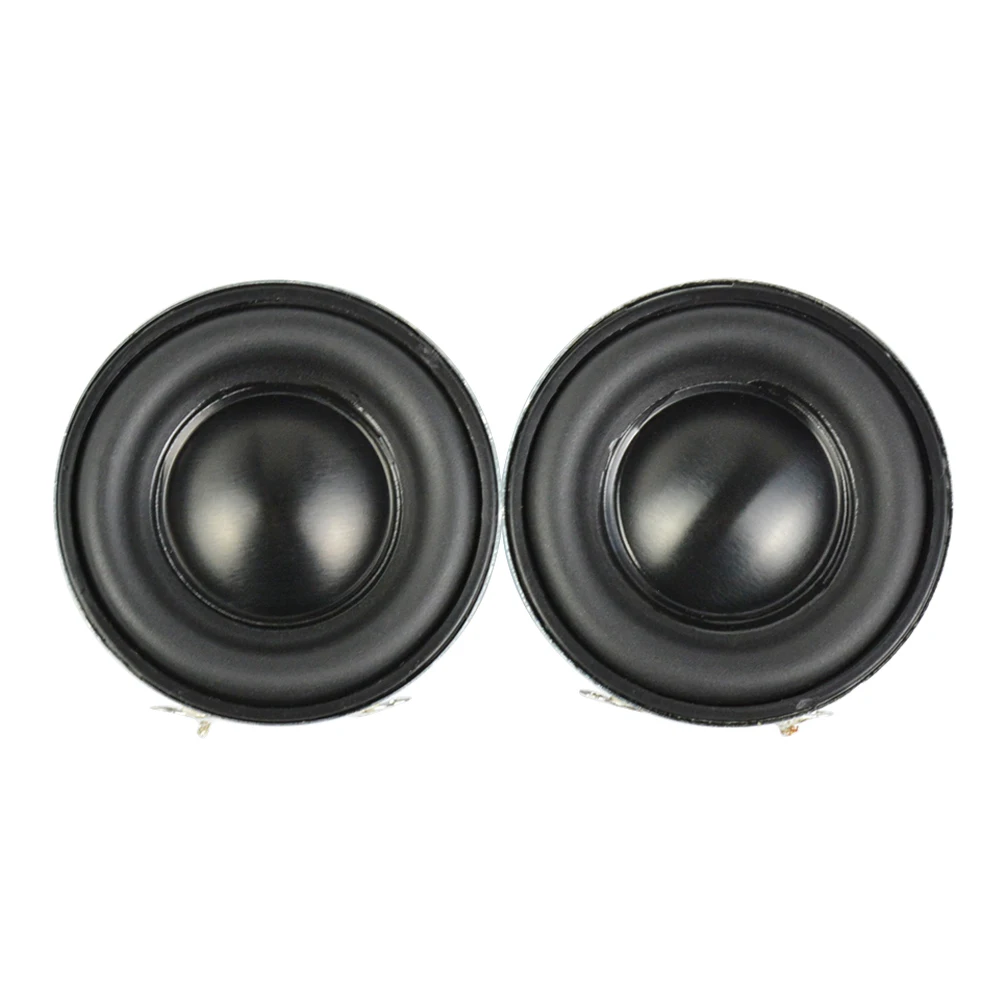

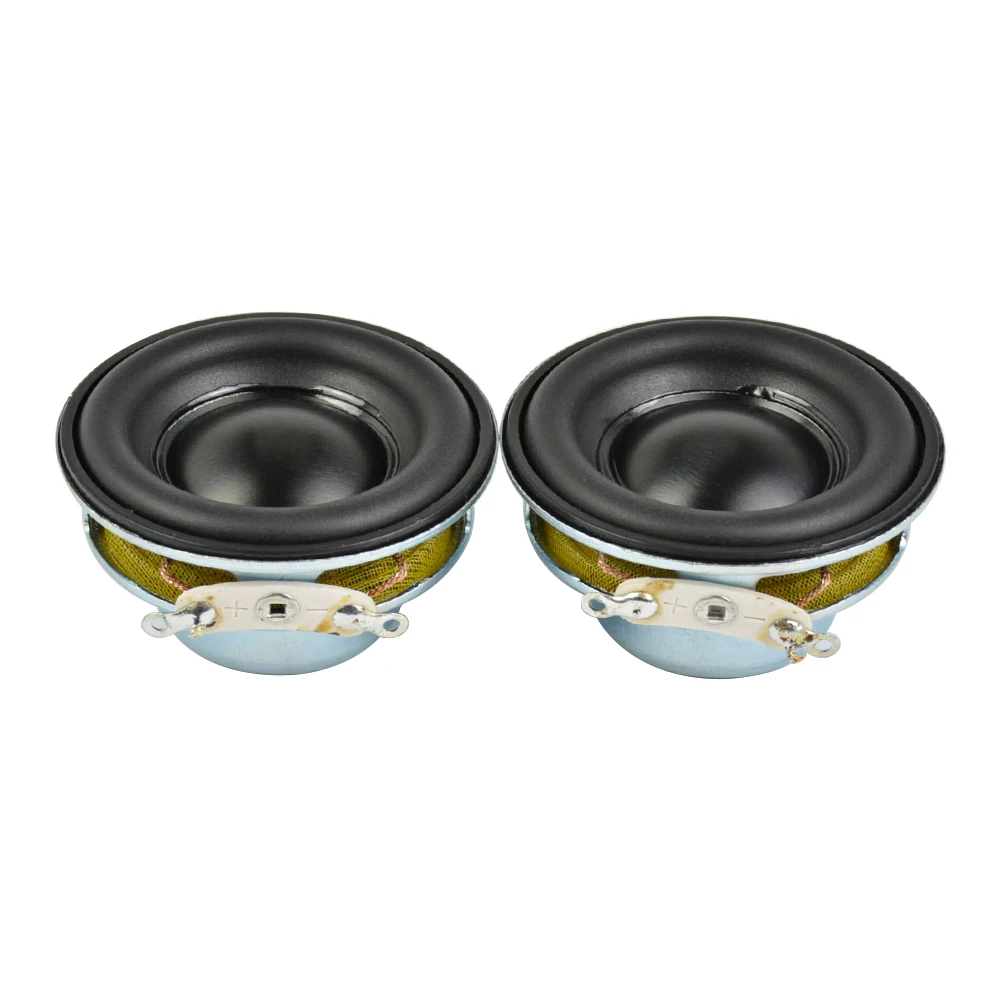

Speaker Driver Unit 40mm Mini Audio 16 Core 4 Ohm 5w Full Range Ndfeb Magnetic 2pcs
Original price was: €34,49.€25,95Current price is: €25,95.
- Hurry up! Only 2 discounted items left in stock!
✅ Free shipping
✅ Returns accepted
✅ Processing Time: 1-3 business days
Speaker Driver Speaker 2Pcs 40MM Mini Audio Portable Speakers 16 Core 4 Ohm 5W Full Range Speaker Rubber Side NdFeB Magnetic Speaker
A: 40mm 4 Ohm 5W Mini Speaker
Category: Electric (moving)
Uses: Bluetooth speakers
Shape: round
Composition: combination of cone
Diaphragm material: non-paper
Magnetic circuit form: double magnetic type
Frequency characteristics: full band (full range)
Rated power: 5 (W)
Rated impedance: 4 (Ω)
Frequency response: 150hz-20 (kHz)Sensitivity: 80 (dB / W)
B: 5Wx2 Bluetooth 5.0 Decoder Amp Board
1. DC3.7 Power supply (dual MOS battery) recommended 1-3A
2. Support FM radio function, automatically search for radio stations and store
3. Support AUX input function
4. Support full function operation of infrared remote control
5. Support LED digital screen real-time display of full function status
6. Support USB / TF / radio / AUX automatic switching
7.mp3 / WAV / WMA song decoding chip
8. Support FAT16, FAT32 file system
9. Support 32-320kbps mp3 songs
10. Support power-off memory function: memory song and volume before power-off
11. The product board with power amplifier 2 * 5W ,it can directly drive a pair of 4 ohm 3w or 2 ohm 5w speakers
Panel key function description:
1. “PREV / VOL-” set long press to decrease the volume; short press in USB / SD / radio mode for the previous song / previous radio station
2. Short press “PLA / PAU” in USB / SD mode to play / pause; short press in radio mode to automatically search for and store
3. “NEXT / VOL +” set long press volume plus; short press in USB / SD / radio mode for next song / next station
4. “MODE” is the mode switching, the switching sequence is: USB → SD → radio → AUX: when there is U disk and SD card: the switching sequence is USB → SD → radio → AUX; when only U disk: the switching sequence is SD → Radio → AUX; when only SD: switch order is USB → Radio → AUX; when there is no U disk and SD card: switch order is radio
C: PAM8403 Bluetooth 5.0 power amplifier board
Input voltage: DC5V
Output power: 5Wx2
Audio input: Bluetooth 5.0
Amplifier Chip:PAM8403
Number of channels: two channels
Gain:4
Size: 45*42*25MM
Installation aperture: 3MM
| Weight | 5 kg |
|---|---|
| Dimensions | 5 cm |
| Brand Name | Aiyima |
| Inbox adaptor | No |
| Cabinet Material | Metal |
| Audio Crossover | Full-Range |
| Waterproof | No |
| Communication | AUX |
| Speaker Type | Combination |
| Channels | 2 (2.0) |
| Support APP | No |
| Battery | No |
| Category | Speakers |
| Use | Home |
| Origin | Mainland China |
| Sound Mode | Hi-Res Sound Mode |
| Voice Control | No |
| Power Source | None |
| Number of Loudspeaker Enclosure | 2 |
| Input Power(W) | <25 W |
| High-concerned chemical | None |
| Input/Output | Other |
| Remote Control | No |
| Support Apt-x | No |
| Output Voltage | Other |
| Support Memory Card | No |
| Feature | None |
| Playback Function | None |
| Certification | RoHS |
| Wi-Fi Music | None |
| PMPO | 5 W |
| Impedance | 4 Ohm |
| Material | Metal |
| Display Screen | No |
| Built-in Microphone | No |
| Frequency Range | Other |
| Intelligent Personal Assistant | None |
14 reviews for Speaker Driver Unit 40mm Mini Audio 16 Core 4 Ohm 5w Full Range Ndfeb Magnetic 2pcs
Only logged in customers who have purchased this product may leave a review.
Shop with Confidence:
100% Money Back Guarantee.
Transactions protected by PayPal.
Connection secured by Cloudflare SSL.
Get the item you ordered or your money back.
Price and Postage:
Prices includes VAT.
Shipping details:
Enjoy a 100% free shipping option.
Returns and Refunds:
60 days returns and refunds.
Money Back Guarantee details here.
Shipping details:
Order dispatched within 24 Hours(1 day) after receiving cleared payment. *
Estimated delivery between 3 to 9 Business days Express Shipping to US.
Estimated delivery between 5 to 15 Business days Regular Shipping to US.
*Due to payment transfer delays, holiday delays or product high demand, sold out status, dispatch might extend from 1 to 3 business days processing time.
Please allow additional time if international shipping is subject to customs processing.
World wide shipping from Singapore, HK warehouses.
Please contact us for more details about Express shipping option here.
Read more about Shipping and Dispatch here.
Order Tracking:
A tracking number will be provided after the order is dispatched.
Track order here.
Loyalty Reward Points:
Customers earn 100 point for every 1 € spent.
Read more about returning customers reward points here.
Customer Support:
[email protected]
Contact us here.
Original price was: €34,49.€25,95Current price is: €25,95.
j***l –
El producto llegó más tarde de lo usual pero llegó al final. es un poco más demorado cunado envían cosas a Ecuador. Con respecto a los parlantes, funcionan muy bien para ser pequeños suenan bien.
L***l –
llegó a tiempo y en buenas condiciones llegó muchísimo más antes de lo estimado muchas gracias ….
C***a –

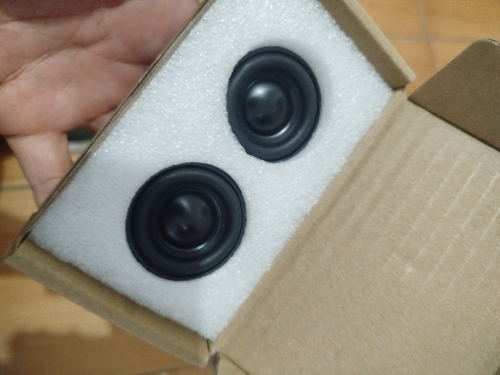

Qualidade espectacular, embalagem como se pode ver nas fotos, 5 estrelas e o som impecável. recomendo fortemente este vendedor. Estou muito contente, parabéns.
Customer –
Excelente alto falante, uso em meus projetos.. Chegou rápido aqui no Brasil.. Minas Gerais.. Top..
V***v –

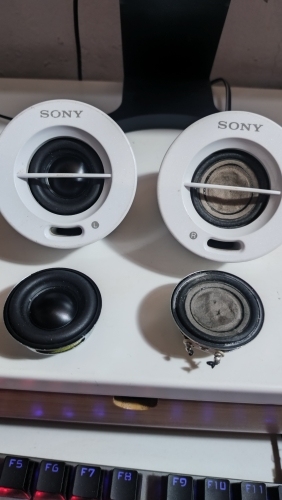

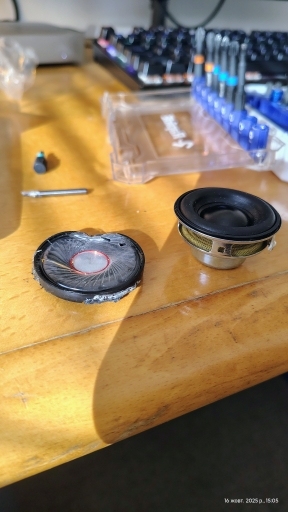

Чудовий динамік на заміну в навушники
C***a –
Já compro esses alto-falantes há muito tempo. Faço meus projetos com ele e ficam muito bons. Qualidade muito boa. Foi uma pena eles terem ficado lá tão mais caros que antes. Não foi muito bom para os negócios. Mas são ótimos. Continuo comprando. Super recomendo.
L***a –
muito bom!
Customer –
Buen producto, sobretodo por la relación calidad precio. por ello recomiendo este producto
I***k –
всё супер
У***и –
всё гуд
В***р –
Super. 100% Дякую.Луц.The best 👌 👍 😍 🥰
A***z –
Pensé q iban a estar más grandes (no vi las medidas) se escucha súper bien
Customer –

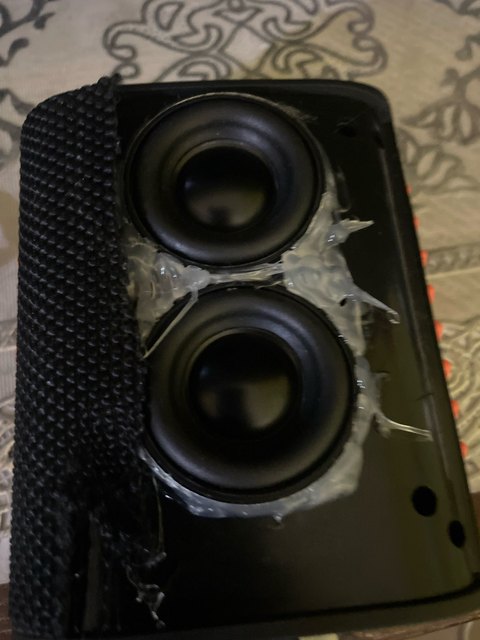

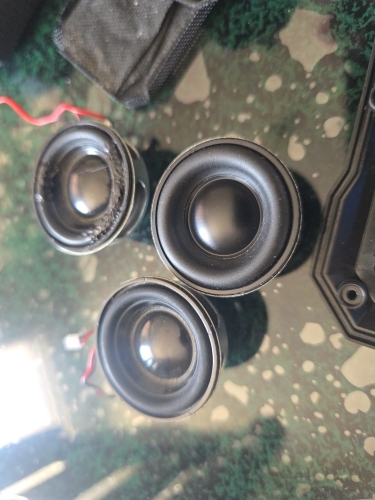

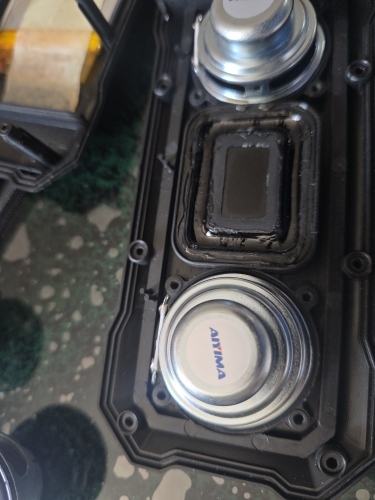

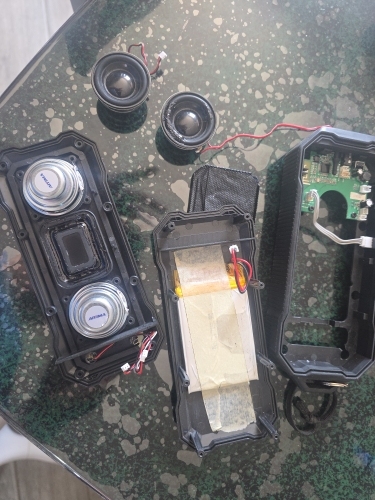

Muy buena calidad, correctamente empacadas. Quedaron perfectas para reparar una bocina Bluetooth con transductores similares.
Customer –

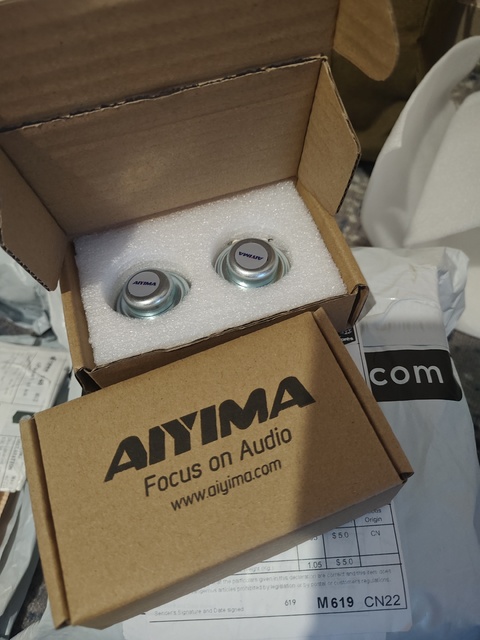

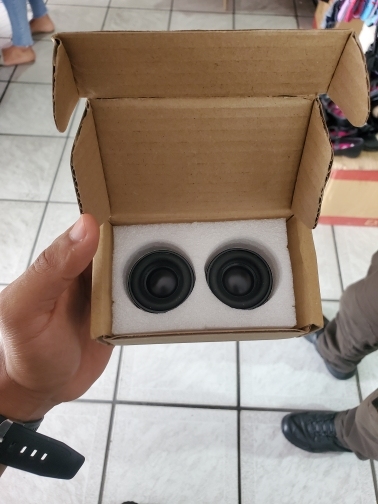

bien empacados, y tienen buen sonido, calzaron perfectos en mis parlantes. Los recomiendo
