Description:
1. Magnetic circuit system: rare-earth aluminum-iron-boron magnetic structure + short-circuit ring copper sleeve, solves the thoroughness of medium and high frequency from the starting point.
2. The cones are mainly bass and mid-high, and cotton fibers are selected through various screenings.Treble cup material selected bamboo + bark fiber, high-frequency thorough and not harsh.
3. high temperature resistant copper clad aluminum wire with Kapton skeleton + high heat dissipation coating, the speaker heart has excellent quality.
4. Pure copper plated gold terminals ensure zero resistance contact and do not let go of a music signal, achieving high fidelity.
Features:

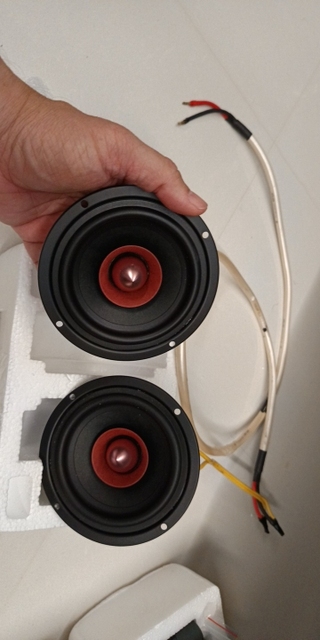

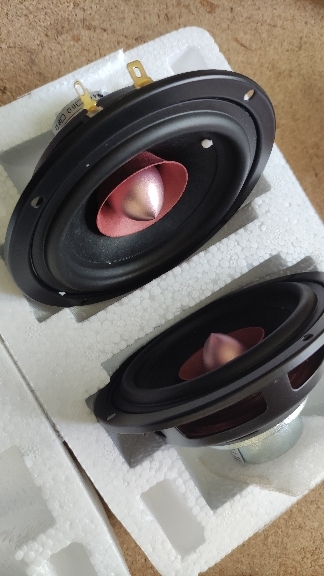

Product name:4 inch full range speaekr

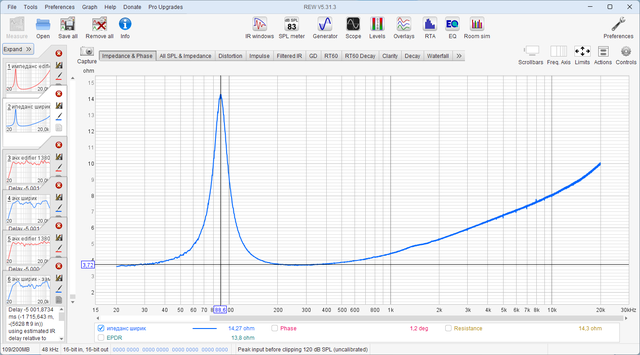

Impedance: 4 Ohm (if you need 8Ohm,please leave me message).
Rated power: 25W

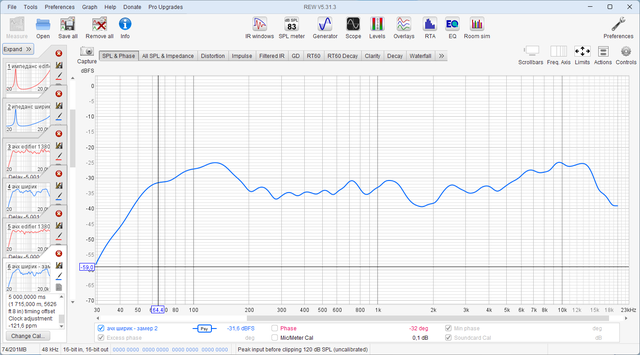

Frequency response range: 78Hz-19.8KHz
Sensitivity: 88.5+-3dB
Cone material: cotton fiber + bark fiber
Vas: 7L
Qts: 0.7
BL: 1.99T
MMS: 2.3g
Voice coil skeleton: Kapton
Linear displacement: 6.5mm

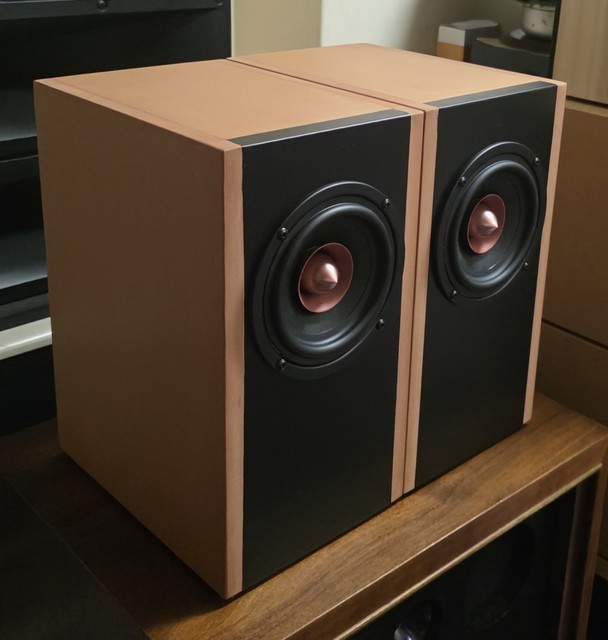

Cabinet type: guided phase
Recommended phase guide tube: inner diameter 37mm, length 100mm.
Voice coil diameter: 25mm
Magnetic steel diameter: 35mm
Horn diameter: 116mm
Diagonal screw hole distance: 108mm
Height：54mm
Net weight:260g/pc
Package:
2PCS
