Njw1194 Preamp Board Remote Volume Control Source Switching Bass Treble

GHXAMP NJW1194 Preamp Board with Remote Volume Control, Source Switching, and Bass/Treble Adjustment for DIY Audio Mods 1PC

The version sent is in English.

3.5-inch Touchscreen + Remote Control Volume Control Board, 4-to-1 Signal Selection

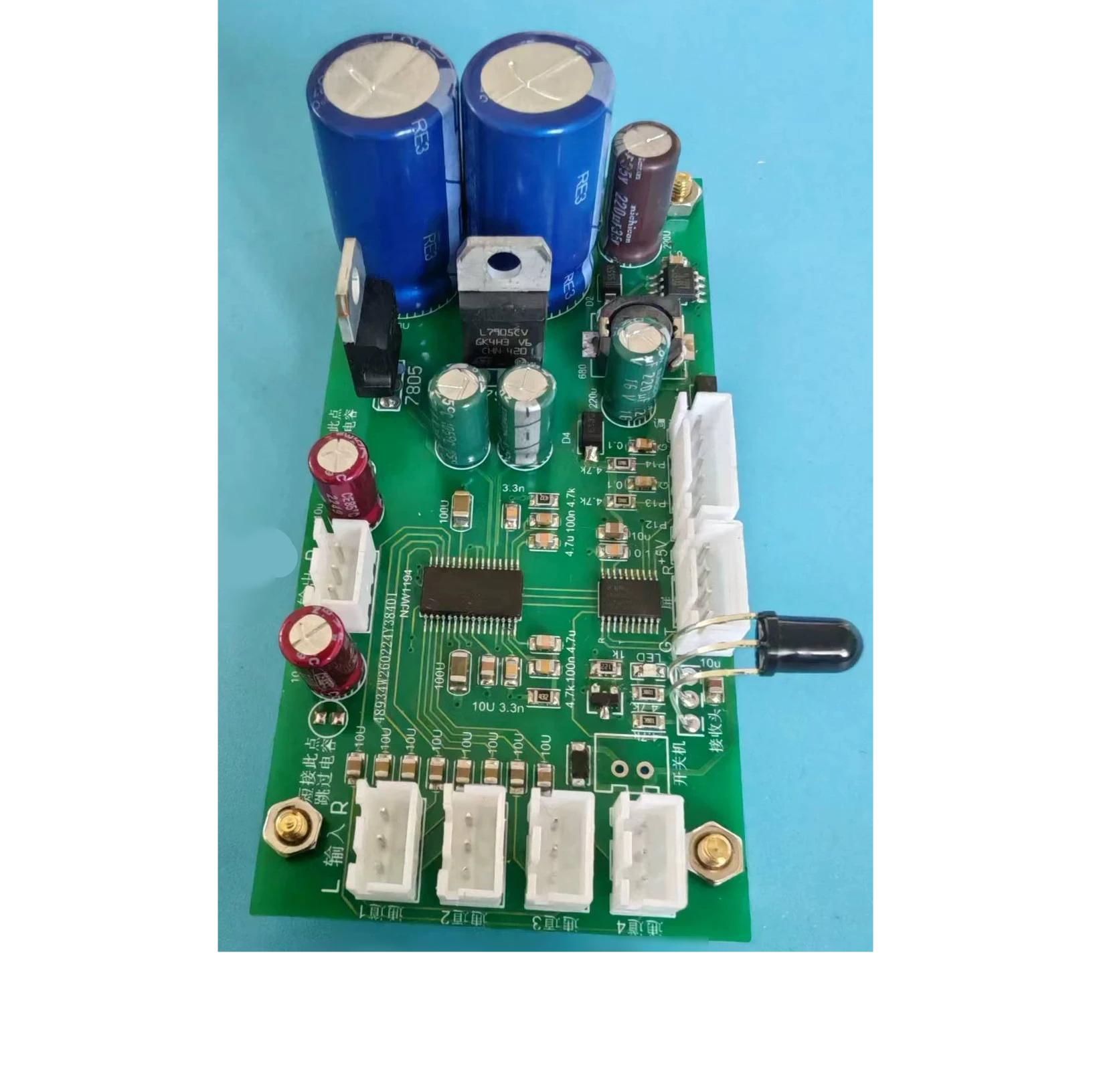

The NJW1194 is a professional analog signal processing IC introduced by New Japan Radio Co., Ltd. This board provides bass/treble adjustment, 4-channel input selection, and left/right channel balance adjustment.

It uses a precision resistor ladder network, completely eliminating mechanical wear and delivering pure sound quality:
Eliminates left/right channel imbalance, noise, and contact aging caused by conventional carbon-film potentiometers.

Total harmonic distortion (THD) is only 0.0015%, and channel separation reaches -120 dB.
In actual listening, this translates to extremely precise instrument positioning, non-harsh highs, and clean, tight lows, without the muffled or veiled sound often associated with traditional potentiometers.

Based on various suggestions from users and from a practical application standpoint, this board implements all information display and operation entirely through the touchscreen and remote control, providing an all-in-one solution.

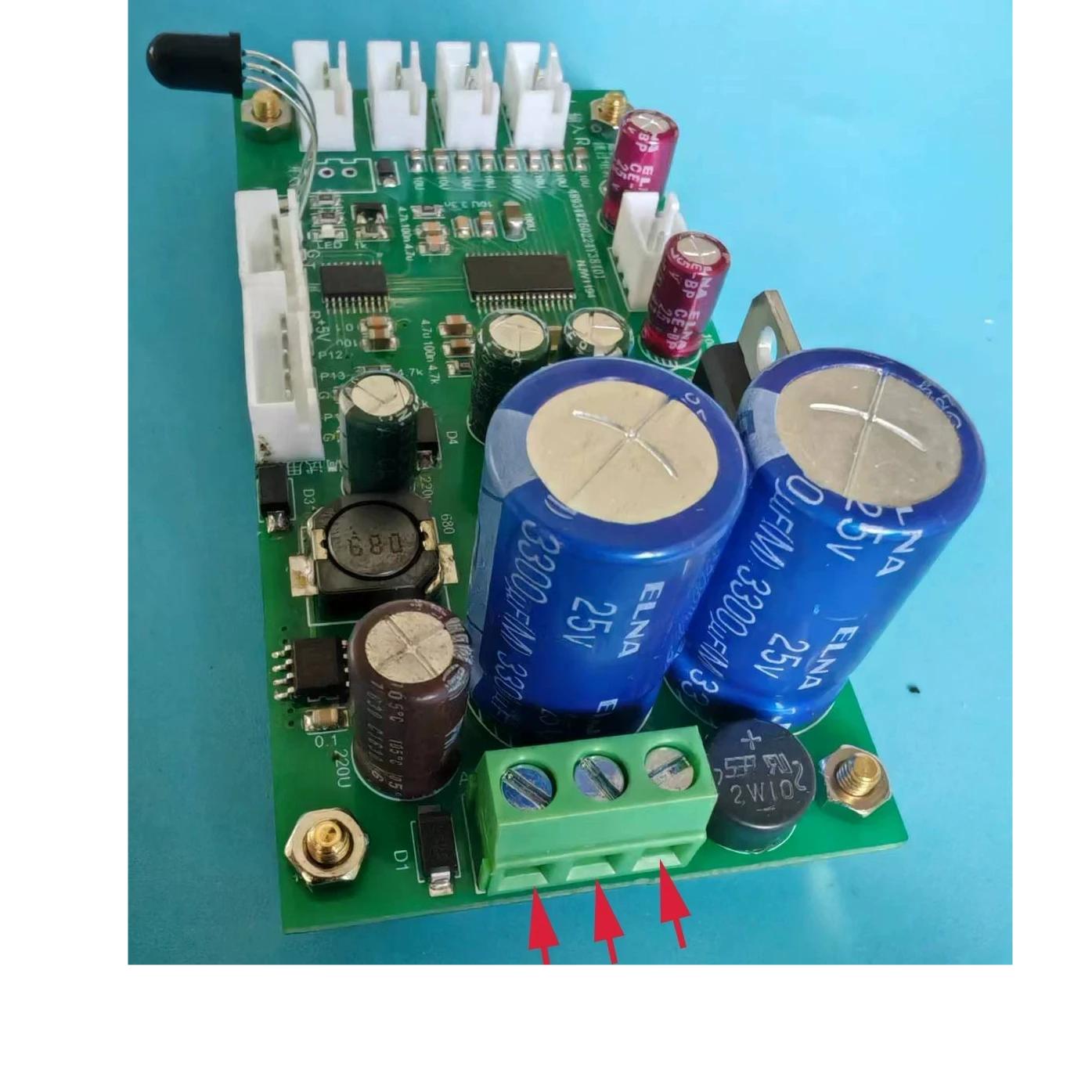

Power supply: AC dual 7V–dual 15V (3 wires: AC GND AC). Recommended transformer power: 20W minimum.

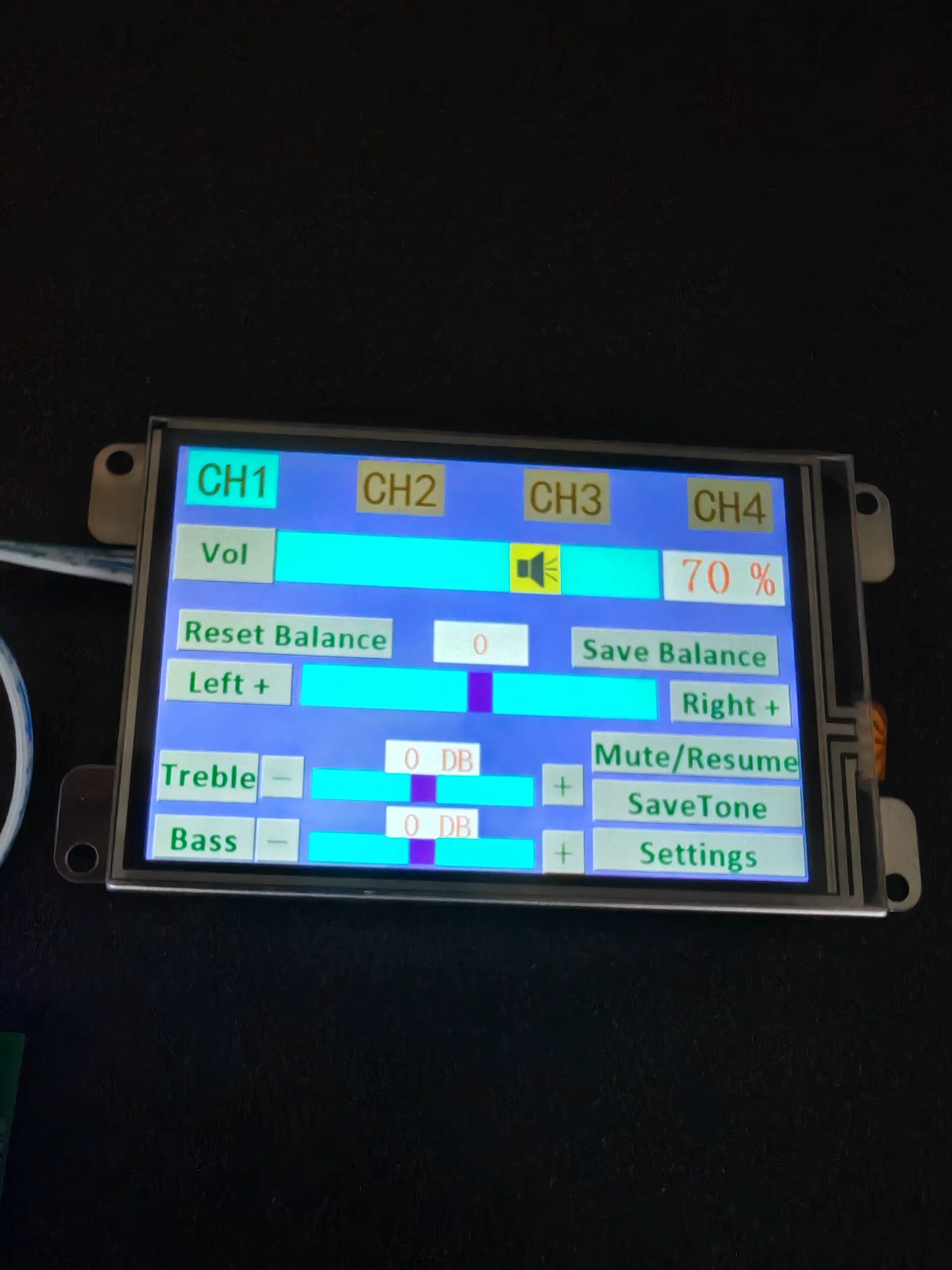

Touchscreen controls: channel selection, volume adjustment, balance adjustment, mute operation, and bass/treble adjustment.

Remote control operations: channel selection, volume adjustment, and tone adjustment.
Settings menu: the gain of the 4 channels can be individually set between 1x and 5x.
The power-on volume and the volume when switching channels can also be set.

Treble and bass can be independently set for each channel.
After completing the settings, press the Save button to store them automatically.

Package:
1 piece.
